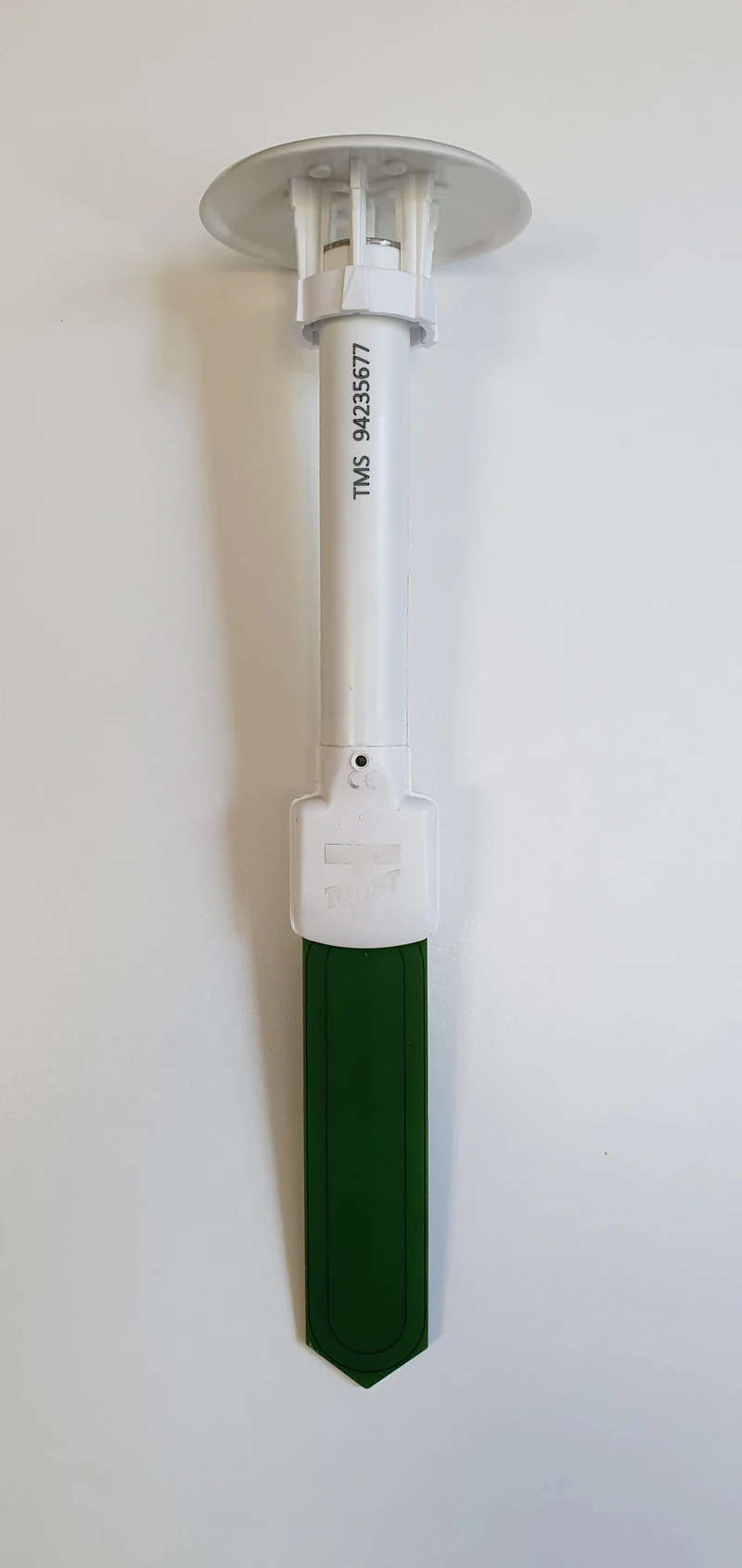

Sun Shields
Sun shields keep direct sunlight off the temperature sensors, so solar radiation does not distort the measured temperatures.
Included with your order
- Every TMS datalogger ships with a Sun Shield TOP and Security Ring at no extra charge.
- TMS Extreme units ship with the improved Meteo Shield - a tougher generation that is less likely to break or be blown off.
- The TMS Installation Tool is complimentary with every TMD Adapter order.

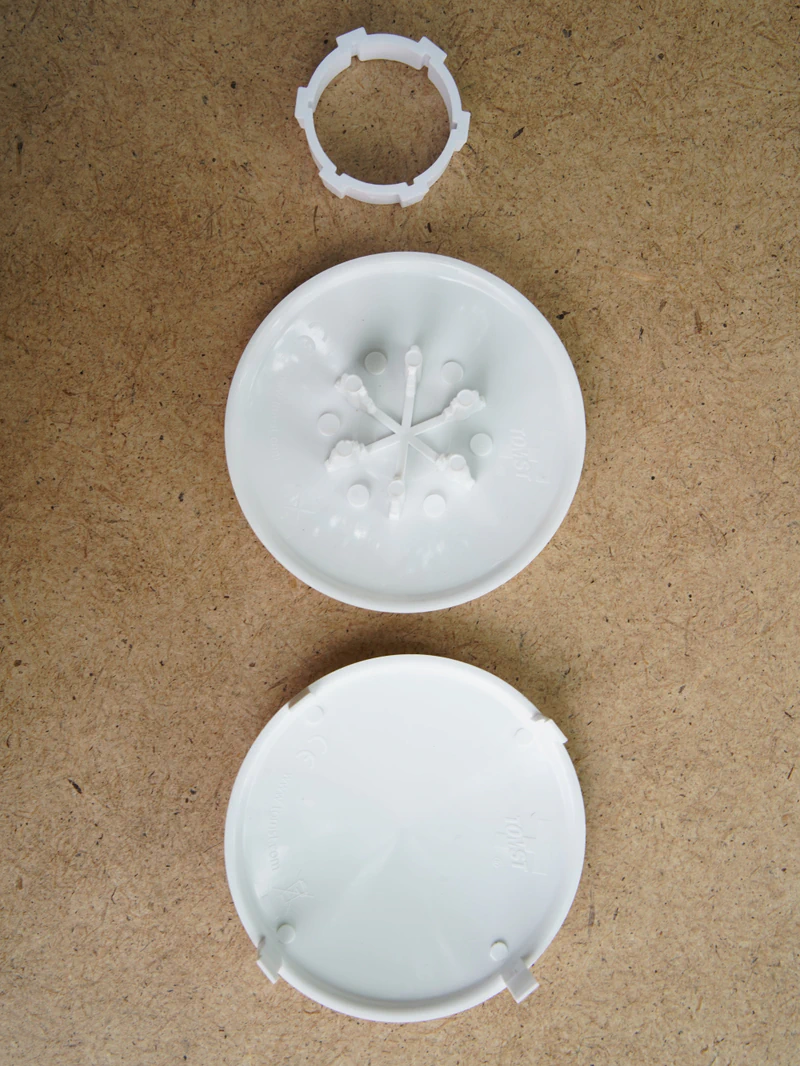

Sun Shield Set
The Sun Shield Set includes:
- Sun Shield TOP
- Meteo Shield TOP
- Security Ring

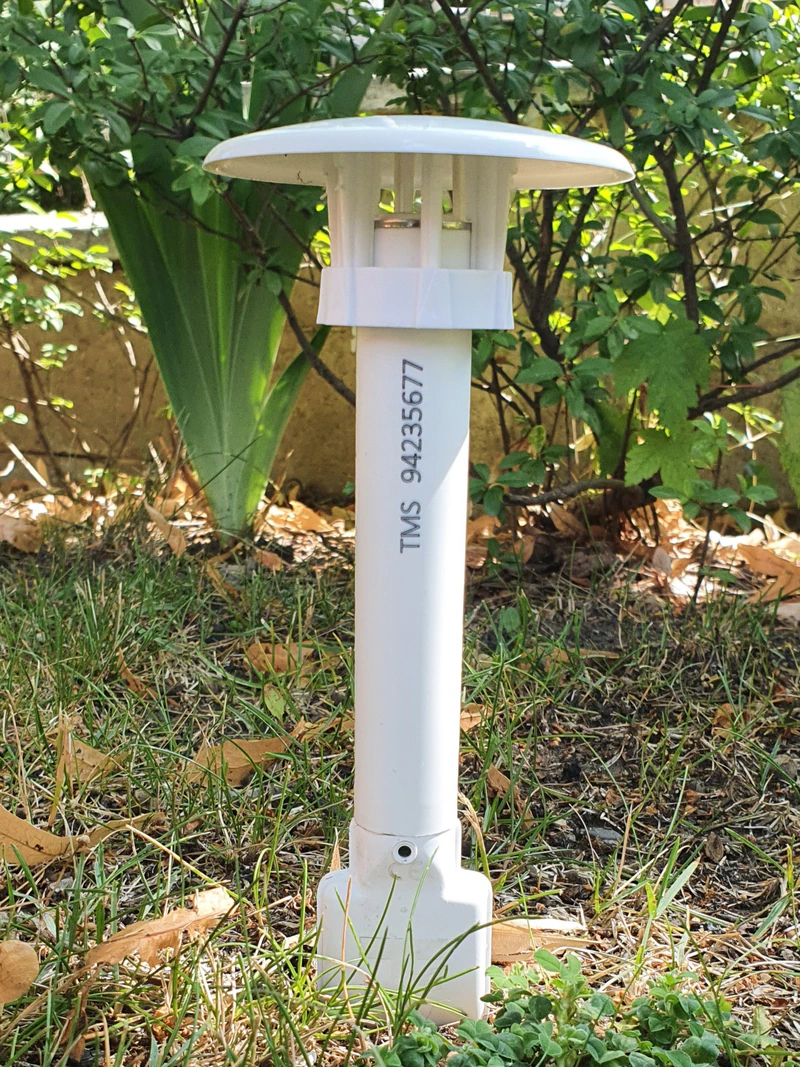

Sun Shield TOP
The top shield covers the upper temperature sensor to reduce the effect of direct sunlight.

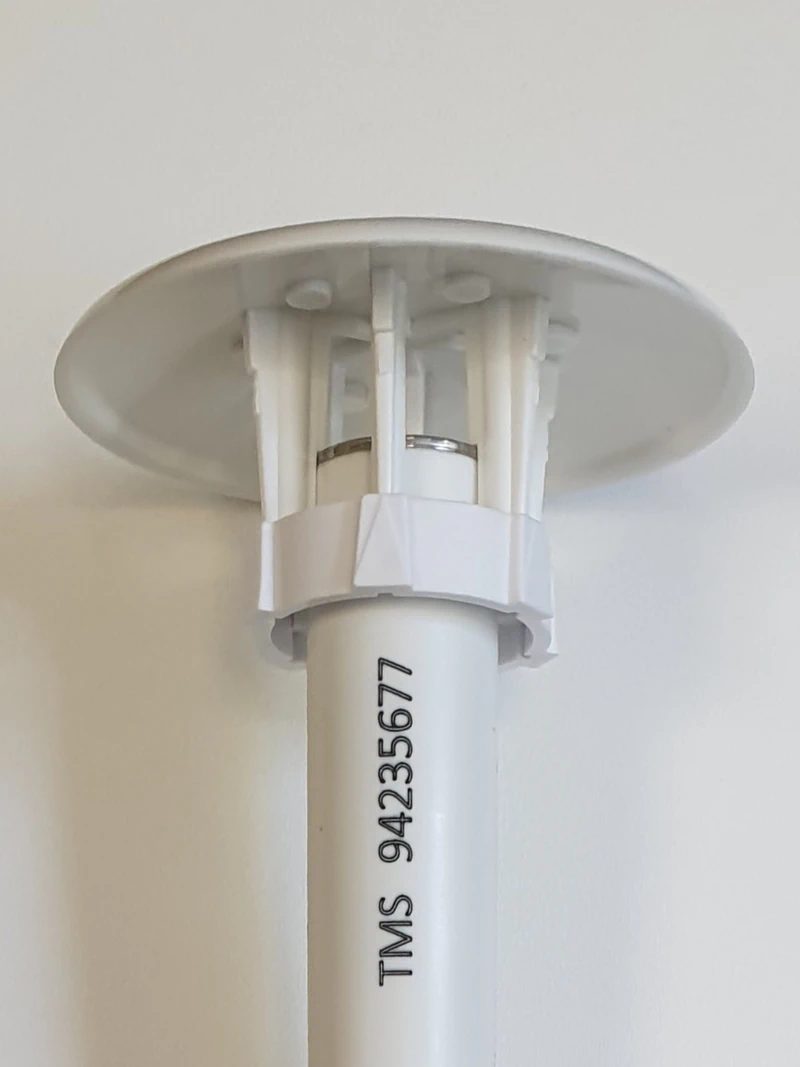

Sun Shield Security Ring
The security ring is easy to install and holds the shield firmly in place. It helps prevent the shield from being blown off or removed by accident.

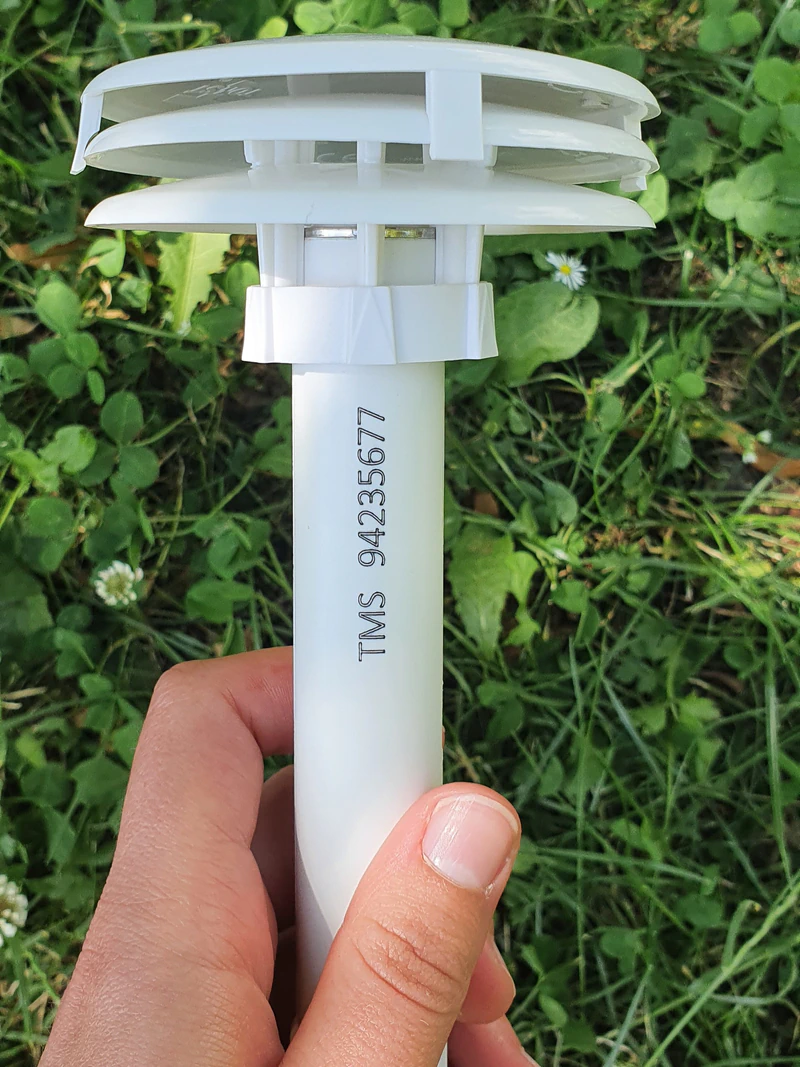

Meteo Shield
The Meteo Shield adds multiple protective barriers. The top shield (Meteo Shield TOP) blocks direct sunlight, while the lower shield (Sun Shield TOP) helps reduce heat transfer and provides extra protection from remaining sunlight.
A separate lower Meteo Shield part also exists, but field testing showed it provides little additional benefit, so by default only the upper (TOP) part is used.

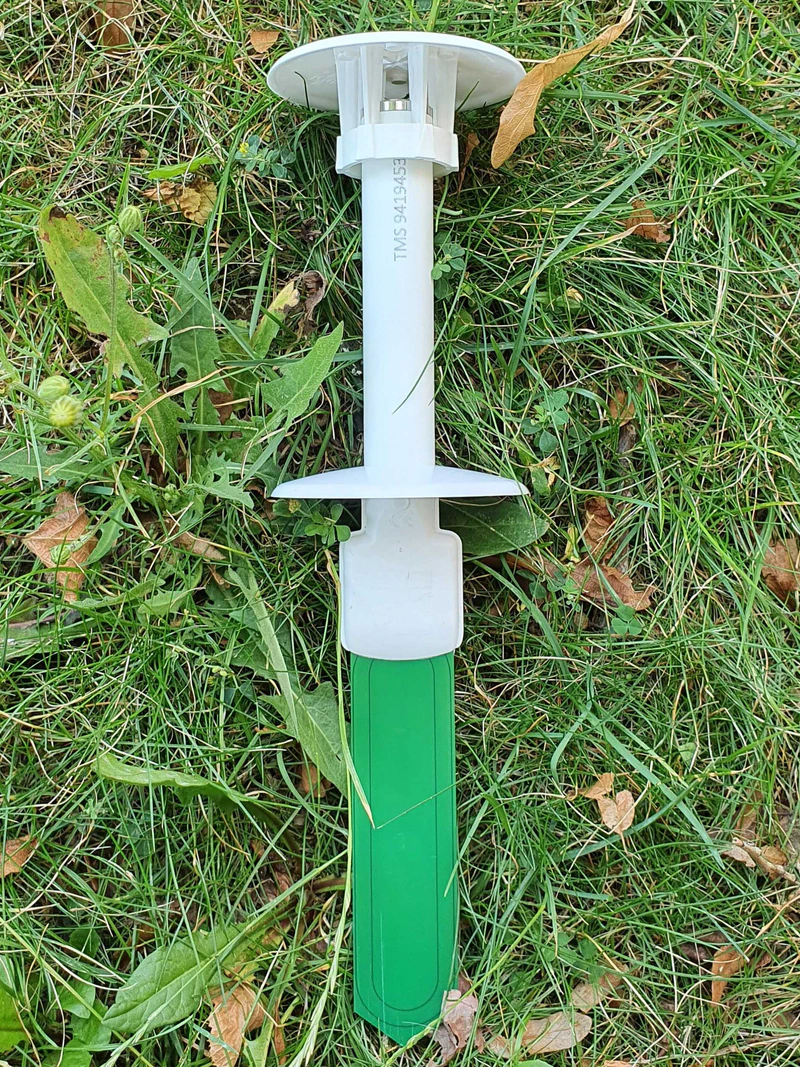

Sun Shield BOT
The bottom sun shield was originally used to protect the second (middle) temperature sensor, but based on field experience it showed little to no effect. The top shield provides sufficient protection for typical use.
The bottom Meteo and Sun Shields are still available separately, but are not included by default.
